Seed source for single amplifier and compact front-end of DPSSL.
Robust design of GO Pico fiber oscillator guarantees excellent beam quality and stability. The excellent properties of GO Pico make it our first choice of the seeding source for PERLA lasers. It is also now available as a product for external customers.
GO Pico is a mode-locked all-normal dispersion (ANDi) fibre oscillator with mode locking obtained by nonlinear polarization rotation, and is used as a seed source for single amplifiers and compact front-ends of DPSSLs.
2–6 ps
pulse duration
30–40 MHz
repetition rate
3 nJ
energy per pulse
<1%
power stability

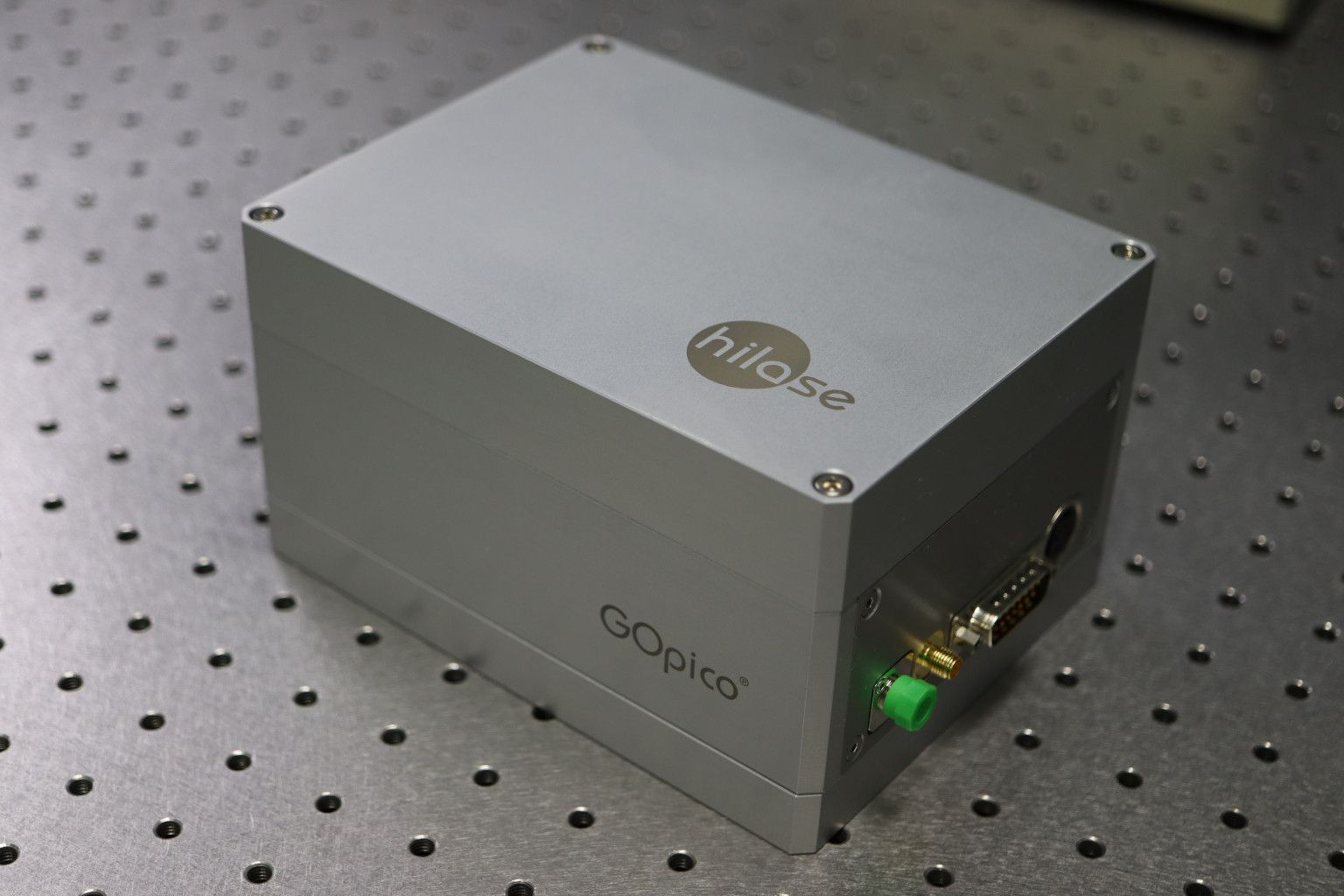

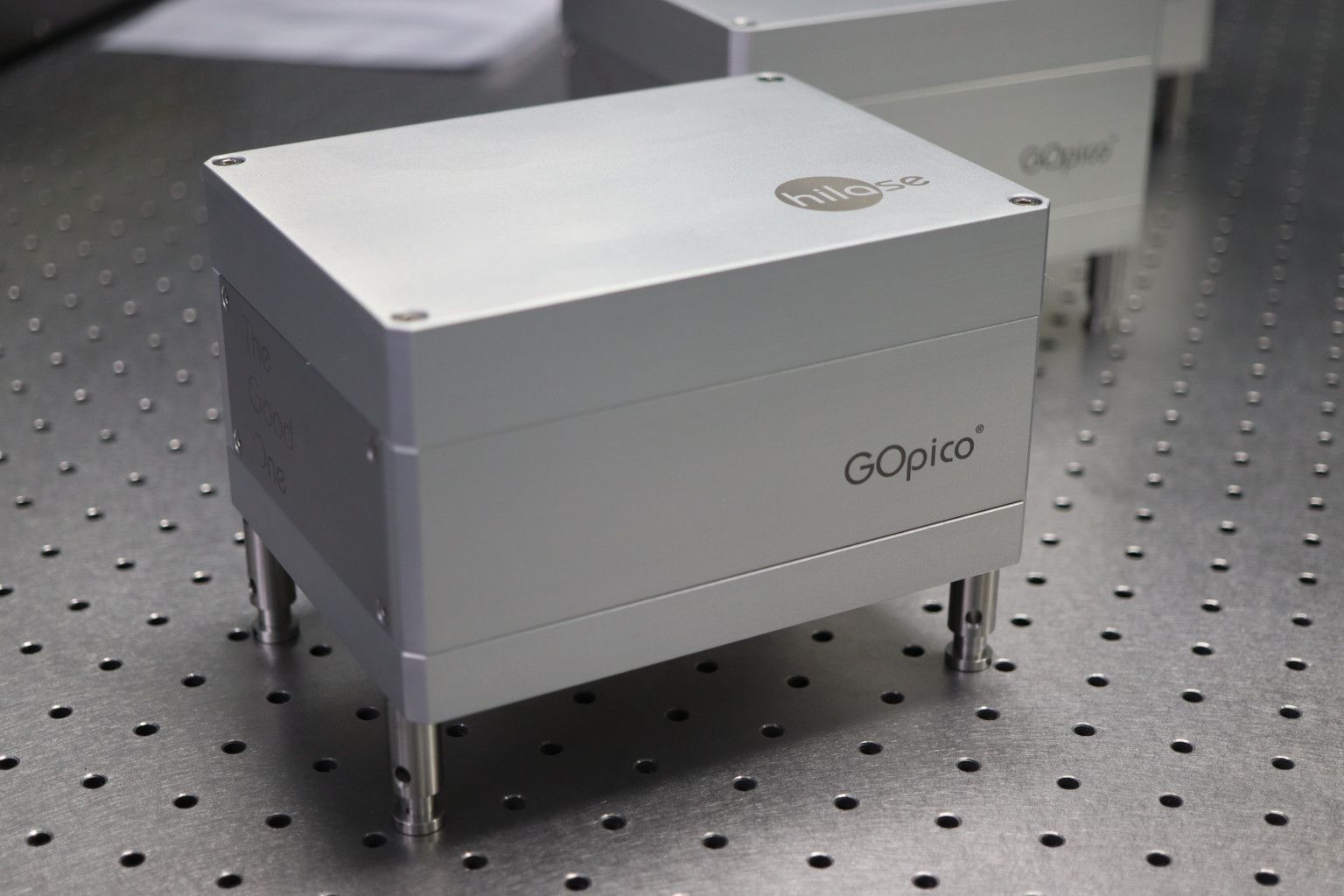

GO Pico fiber oscillator
Why choose HiLASE GO Pico fiber oscillator
- Robust & compact design
- High beam quality
- Stable and reliable seed source
- Proven and tested in our own laser systems
- State of the art system
Technical specifications
| OPTICAL | ||
|---|---|---|
| Wavelength [nm] | 1030 ± 10 | 2027 ± 3 |
| Energy per pulse [nJ] | 1 – 3 | 1 |
| Output power [mW] | 30 | 15 |
| Pulse duration [ps] | 6 | < 2 |
| Repetition rate [MHz] | 20 – 40 | 15 – 30 |
| M2 [-] | 1.05 | |
| Power stability [%] | < 1 | < 1 |
| Polarization | linear | linear |
| External interface | Fibre-coupled, FC/APC | |
| External synchronization | Photodiode (optional) | |
| MECHANICAL | ||
| Dimensions [mm3] | 200 x 180 x 73 | 200 x 180 x 73 |
| Cooling | passive | passive |
Operating requirements
| Operating voltage [VDC] | 5, ± 12 | |
|---|---|---|
| Power consumption [W] | < 36 | |
| Operating temeperature [°C] | 23 ± 3 | |
| Relative humidity [%] | 20 – 60 (non-condensing) |
Optional features
- GO femto
- Built-in photodiode with SMA connector for external synchronization
- Frequency stabilization
Contact us
Ready to explore the potential of GO Pico fiber oscillator or just need to know more? Please contact us here or at solutions(at)hilase.cz, and we can start creating your solution together.
